| Place of Origin: | Changzhou City, Jiangsu Province, China |
| Brand Name: | UNIVERSAL TENT |
| Certification: | ISO9001:2008, SGS, TUV, etc. |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1. membrane film. 2. Carton. 3. PVC carry bag |
| Delivery Time: | 15-30 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000sqm/month |
| Frame: | Hard Pressed Aluminum Alloy 6061/T6 | Roof Cover: | 650~950g/sqm, Block-out Double PVC Coated Fabric |
|---|---|---|---|
| Waterproof: | Waterproof | Color: | Transparent, White, Etc. |
| Customized: | Available | Wind Load: | 70-100km/h |
| Flame Retardance: | Yes | Sidewalls: | Soft PVC Walls, Glass Wall, ABS Hard Wall, Sandwich Hard Wall |
| High Light: | pvc party tent,pvc canopy tent |
||
10*6M White Hajj Tent with Transparent Church Windows and AC System for Outoor Festival Event
Description

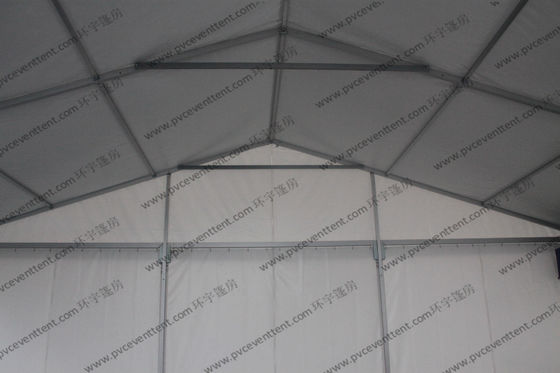

The main profile size of this Hajj event tent is 152X119X4mm. The modular structure can be increased or decreased in bay distance of 3m or 5m according to the clients' requirements. The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile, which is flame retardant. And the optional colors include white, red, yellow, blue, green, black, grey, transparent, etc.
Size of our Tent:
The clear-span of tent is from 3m to 40m, the length could be 6m, 9m, 12m, +3m more or 10m, 15m, 20m, and +5m more. And the length of our tent is no limited. Customized size can also be available.
| Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| 8m/26.2' | 5m/16.4' | 3.3m | 4.53m | 152x119x3.5mm(4-channel) |
| 10m/32.8' | 5m/16.4' | 3.3m | 4.85m | 152x119x3.5mm(4-channel) |
| 12m/39.4' | 5m/16.4' | 3.3m | 5.16m | 152x119x3.5mm(4-channel) |
| 15m/49.2' | 5m/16.4' | 3.3m | 5.62m | 152x119x3.5mm(4-channel) |
| 16m/52.5' | 5m/16.4' | 3.3m | 5.72m | 152x119x3.5mm(4-channel) |
| 18m/59' | 5m/16.4' | 3.3m | 6.01m | 152x119x3.5mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available | ||||
Applications:
Widely used for parties, weddings, events, celebrations, sports, trade shows, warehouse, Hajj, conferences, cafe shops, restaurants, corporate events, etc.
Accessories
